RULA and REBA ergonomic assessment tools are an essential part of modern occupational health and safety programs. This article explores the origins, elements, and scoring systems of both scales.
RULA (Rapid Upper Limb Assessment) and REBA (Rapid Entire Body Assessment) are two of the most widely used ergonomic assessment tools across the globe. Developed in the early 1990s by McAtamney and Corlett from the University of Nottingham's Institute for Occupational Ergonomics, these frameworks quickly found practical applications in diverse work environments.
Both RULA and REBA are designed to evaluate the risk of musculoskeletal disorders (MSDs) by focusing on posture, force, and repetitive movements.
RULA (Rapid Upper Limb Assessment) is specifically focused on assessing the upper body, including the neck, trunk, and upper limbs (shoulders, arms, and wrists). It is commonly applied in environments where employees perform repetitive upper body movements or work in awkward postures. RULA assigns a risk score based on the observed postures, helping identify areas where ergonomic improvements are needed to minimize injury risk.
REBA (Rapid Entire Body Assessment), on the other hand, takes a more comprehensive approach by evaluating the entire body, including the legs, trunk, neck, and upper limbs. It is ideal for analyzing tasks that involve complex postures, lifting, and handling activities. REBA provides a broader view of ergonomic risks, making it suitable for a variety of work environments.
Both assessments score postures based on their angles and alignment. For example, bent wrists, raised shoulders, or twisted trunks receive higher scores, as these postures pose a greater risk of injury. The assessments also consider force/load, such as lifting heavy objects or pushing/pulling loads, and evaluate movements for their repetitiveness, duration, and frequency—since repeated awkward postures or movements increase ergonomic risk.
How RULA and REBA work
1. RULA scoring system
RULA primarily evaluates the upper limbs (neck, shoulders, arms, trunk, and wrists), assigning scores based on observed postures during tasks. The assessment considers additional factors like force exertion, load, repetition, and movement duration. Each body segment is rated according to its deviation from a neutral position, with greater angles of deviation resulting in higher risk scores. After scoring individual body segments, these are combined into a final score ranging from 1 to 7:
- A score of 1-2 indicates an acceptable posture.
- A score of 3-4 suggests a low-risk posture that requires attention.
- A score of 5-6 signifies the need for further investigation to identify the causes of hazardous postures and implement ergonomic improvements.
- A score of 7 highlights a high-risk posture that demands immediate ergonomic intervention to safeguard the worker’s health.
2. REBA scoring system
The REBA scoring system takes a more comprehensive approach compared to RULA by evaluating the entire body, including the legs, and considering additional factors such as coupling and more detailed force/load gradations. Similar to RULA, postures are rated based on their deviation from a neutral position. The final REBA score ranges from 1 (low risk) to 15 (high risk), offering a thorough assessment of ergonomic risks in whole-body tasks. The final score gradations are as follows:
- A score of 1 indicates that the posture poses no potential risk to the worker.
- A score of 2-3 requires some additional investigation and potential adjustments to the work setup.
- A score of 4-7 suggests the need for changes following a more thorough investigation.
- A score of 8-10 highlights the need for definite changes, with an urgent investigation required.
- A score above 10 signals a very high-risk environment, necessitating immediate ergonomic adjustments.
Common applications
RULA and REBA are widely used in several industries to identify and address ergonomic risks. Key sectors where these assessments are applied include:
- Manufacturing: Workers in this industry frequently engage in repetitive motions, heavy lifting, and awkward postures. RULA and REBA help evaluate the strain on the body, ensuring tasks are ergonomically optimized.
- Healthcare: Healthcare professionals often perform physically demanding tasks like patient handling and lifting, which can lead to musculoskeletal injuries. RULA and REBA assess the risks associated with these movements and suggest improvements.
- Construction: This industry involves strenuous activities such as lifting, carrying, and operating heavy machinery, where whole-body postures are critical. REBA is often used to ensure that construction workers adopt safer postures.
- Logistics and warehousing: In jobs that require continuous lifting, carrying, and stacking of goods, both RULA and REBA are employed to minimize injury risks and improve efficiency in task performance.
- Office environments: Even in less physically demanding workplaces, RULA is used to assess the impact of poor sitting posture, improper desk setup, and repetitive upper-body movements, ensuring that workers avoid long-term strain from desk work.
- Retail: Employees in retail often perform repetitive tasks like restocking, scanning, and customer service. RULA and REBA are used to evaluate these motions to reduce the likelihood of repetitive strain injuries.
Limitations of traditional RULA/REBA assessments and how to overcome them
While RULA and REBA are valuable tools for evaluating ergonomic risks, they come with certain limitations.
Traditional RULA and REBA assessments can result in incomplete evaluations or a lack of precision when observing complex tasks. However, modern technology has made it possible to address these limitations effectively. Continuous assessment sessions and automated scoring now offer a more holistic approach to ergonomic evaluation. While RULA and REBA can score the most stress-inducing postures, motion capture technology identifies risks from even the smallest, repetitive movements.

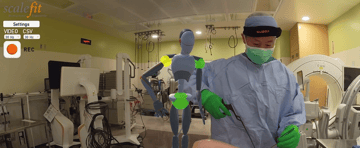

Systems like Xsens' inertial motion capture overcome the limitations of traditional assessments by capturing real-time, accurate movement data for the entire body. Xsens sensors track body postures, angles, and movement patterns in both dynamic and static environments, reducing subjectivity and human error. Motion capture technology assesses risk factors more precisely, monitoring even minor deviations from neutral postures while capturing complex, continuous movements that manual methods might overlook. Additionally, motion capture systems streamline the assessment process by providing immediate feedback, enabling faster ergonomic interventions.
